Floorplan - 2010 Coachmen RV Catalina 26BH
-
-
-
-
1 of 6
+6-
29ft long
-
4,579 lbs
-
Sleeps 8
-
BunkhouseFront Bedroom

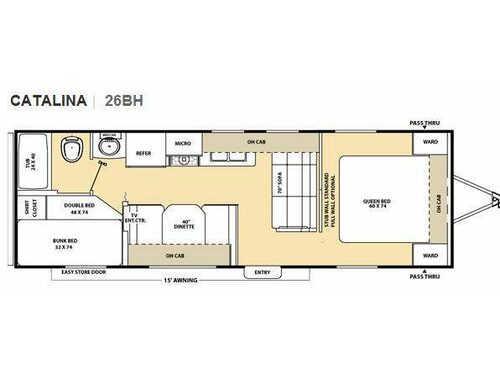

26BH Floorplan

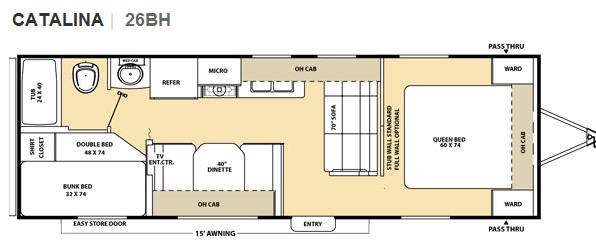

26BH Floorplan
Specifications
Specifications
| Sleeps | 8 | Length | 28 ft 7 in |
| Ext Width | 8 ft | Ext Height | 10 ft 7 in |
| Int Height | 6 ft 9 in | Hitch Weight | 600 lbs |
| GVWR | 7600 lbs | Dry Weight | 4579 lbs |
| Cargo Capacity | 3021 lbs | Fresh Water Capacity | 46 gals |
| Grey Water Capacity | 40 gals | Black Water Capacity | 30 gals |
| Tire Size | 15" | Furnace BTU | 30000 btu |
| VIN | 5ZT2CARB5AA008678 |
Description
Description
Catalina Bunkhouse Travel Trailer w/Rear Corner Bath Including Tub/Shower & Toilet, Separate Sink w/Med. Cabinet, Rear Corner Double Bed w/Bunk Above, Shirt Closet, Booth Dinette w/TV & Overhead Cabinets, Refrigerator, 3 Burner Cooktop, Microwave, 70" Sofa, Stub Wall Between Living Area & Bedroom or Opt. Full Wall, Front Queen Bed w/Wardrobes & Pass-Thru Storage and More!
Features
Features
Standard Features (2010)
Exterior / Construction
- Cambered Structural Steel I-Beam Frame (With full width out riggers)
- 3/8” Fully Decked Roof
- 2” X 3” Longitudinal Floor Joists On Approximately 12” Centers
- Residential In-Floor Ducted Heat (N/A 20RD & 21BH)
- 81” Living Room Ceiling Height
- One-Piece, Seamless, Rubber Roof Material with 12 Year Warranty
- Easy-Trac Electric Slide Out (All Slide Out Models)
- Wall Studs On 16” Centers
- 1/2” Plywood Dinette, Bed And Bunk Platforms
- Roof Rafters, Constructed Of Residential-Style Tapered 5” Trusses
- 5/8” Tongue & Groove Plywood Floor Decking
- R-7 Fiberglass Insulation In Sidewall, Roof & Floor
- .024” Aluminum Exterior Skin with .030 skirt metal
- Dark Tinted (G55) Black Framed Windows W/Safety Glass
- Radius Entry Steps
- SUPERLUBE™ Easy Maintenance Axles
- 15” Radial Tires (14” Radial Tires -20RD & 21BH)
- Silver E-Coat Wheels (N/A 20RD & 21BH)
- Painted Bumper W/Drain Hose Carrier And End Caps
- Radius-Cornered Fiberglass Entrance Door
- Painted Bottom Radius Skirting
- Amber Patio Light W/Inside Switch
- Baggage Doors Are Lockable And Radius-Cornered Grab Handle
- Rain Guttering, Molded W/Drip Spouts
- Easy-Connect Exterior LP Port - Easy Access for exterior LP Grill or Appliance Hook-Up (All Models)
- Polished Aluminum Fender Skirts
Interior and Decor
- Jack Knife Convertible Sofa
- Residential Furniture
- Crank-Up Digital TV Antenna With Signal Booster
- Cable Hook-Up With RG6 Coax Cabling
- Easy-Spin Entertainment Center w/TV Hook-up & 2 BR Speakers (27BHS, 30BHS & 32BHDS)
- Marine Grade Table Leg And Pedestal Base
- Valance & Lambricans Window Treatment (Living Room)
- Brazilian Cherry Cabinets W/ Black Accent Trim
- Large 45” Dinette Tabletop (slide-outs only)
Galley
- Mixing High-Rise Faucet
- Single Piece Countertop With Seamless Edge
- Acrylic Residential-Style Sink with 60/40 Double Bowl
- 3-Burner Range W/ 9,000 BTU Superburner™ (N/A 20RD & 21BH)
- 6500 BTU 2 Burner Range (20RD & 21BH)
- Range Hood W/Light And Exhaust Fan
- Access Doors To The Dinette Booth (All Models)
- Glued & Screwed Cabinet Construction
- Easy-View Extra Large Picture Window At Dinette
- Large Pedestal Dinette Table
- Large U-Dinette – 30BHS, 32BHDS
- Silverware Drawer (20RD & 21BH)
- Single Door Dometic™ Gas/Electric Refrigerator
Bedroom
- Premium Evergreen Sleep System
- Under-Bed Storage, Bed Lifts Easily On Gas Struts
- Deluxe Window Treatments
- Quilted Residential Comforter, Pillow Shams, and Headboard (All Models)
- 2 Shirt Wardrobes, 1 Nightstand, 1 Drawer
Electrical / Heating / Water / A/C
- Roto-Cast Holding Tanks
- 30K BTU Auto-Ignition Furnace With Wall Thermostat (Except 20RD & 21BH)
- 20K BTU Auto-Ignition Furnace With Wall Thermostat (20RD & 21BH)
- 110v G.F.C.I. Protected Exterior Receptacle
- 30-Amp Power Cord
- 6-Gal. Gas Water Heater
- 12v Electrical System W/Deluxe 110v 45-Amp Power Converter
- 12v Demand Water Pump
- Systems Monitor Panel
- Hook-Up For City Water
- Double 20-Lb. Propane Gas Bottles W/ Regulator
Bath
- Shower Curtain With Curved Shower Track,
- Neo-Angle Shower with Glass Doors on 29RLS, 29RKS
- Towel Ring (2) & Toilet Paper Holder
- Marine Toilet With Foot Flush
- Large Sink In Bathroom
Safety
- Propane Alarm
- Breakaway Switch
- G55 Rated Safety Glass Windows
- Dead-Bolt Lock On Entrance Door
- Dual Hitch Safety Chains
- Smoke Alarm
- Multiple Egress Windows
- Fire Extinguisher
- Carbon Monoxide Alarm
Packages
- Customer Value Package (Mandatory Option)
- 13.5K BTU Ducted A/C (Non-Ducted on 20RD & 21BH)
- Heated-Enclosed Underbelly (N/A 20RD & 21BH)
- Microwave Oven
- Dometic™ Double Door Gas/Electric Refrigerator
- Multi-Media Premium Sound System AM/FM/CD Player, Antenna and iPod® Input Jack
- Cable Interior/Exterior Hook-Ups
- A&E™ Patio Awing
- EvenCool™ Ducted Central AC with Wall Thermostat & Louvered-Directional Ceiling Vents (N/A 20RD & 21BH)
- Water Heater By-Pass Winterization Kit
- Plus Package (n/a 20RD & 21BH)
- 30lb Propane Gas Bottles (2) W/ABS Cover
- Outside Shower
- Raised Panel Kitchen Overhead Doors
- 6-Gal. Electronic Ignition (DSI) Gas or Electric Water Heater
- Comfort Package (n/a 20RD & 21BH)
- ABS Shower Surround
- Gas Oven
- Sink Cover (Not a cutting board)
Options
- Camper Kitchen 30BHS & 32BHDS
- Free Standing Dinette 29RKS & 29RLS
- Front Diamond Plate
- Spare Tire And Tire Carrier W/Vinyl Tire Cover
- CSA Standards
- Coa-Cube Futon Bed IPO Lower Bunk (32BHDS Only)
- Hide-A-Bed Sofa (29RLS, 29RKS, 30BHS, 32BHDS)
- Outside Marine Grade Speakers
- Full Wall W/Pocket Door and Wall Mirror (22FB & 26BH Only)
- Customer Value Package W/15,000 BTU AC
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
